Traditional Gages & Masters
Classic gage solutions + high-precision metal master verification system
Traditional Gages
Headlamp Assembly Gage
Light Bar Assembly Gage
Front Bumper Assembly Gage
Front Door Assembly Gage
Tailgate Assembly Gage
6-in-1 Bumper Measurement Fixture
Q-DIP Measurement Software
Gage measurement data信息化 solution — released 2017, measurement platform 2019

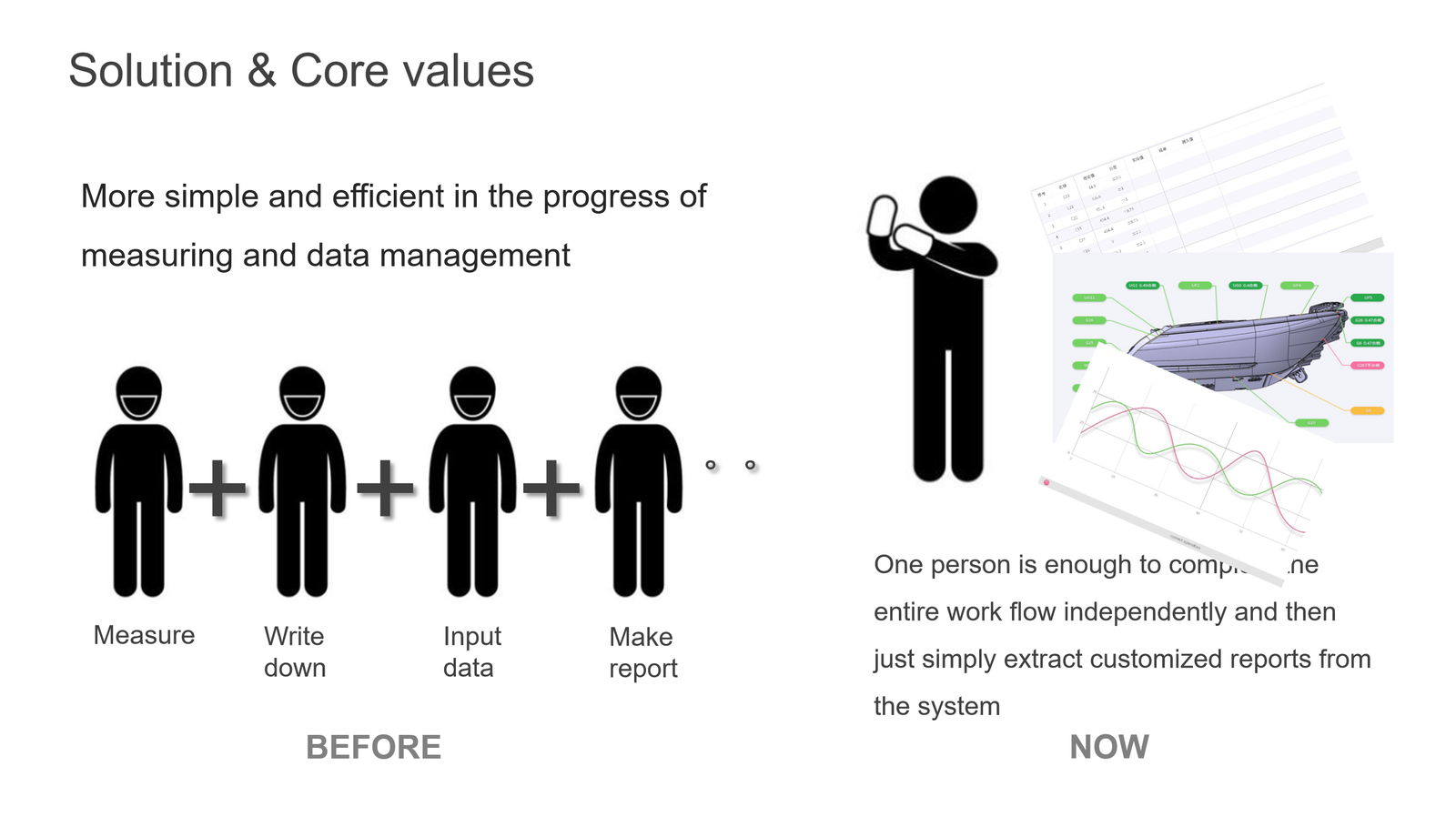

Q-DIP Gage Measurement Data System
✓ Each device supports multiple parts; each part configurable on multiple devices
✓ Part creation, image update, measurement point name/position creation & editing
✓ Custom tolerance, alarm, zero, offset settings per measurement point
✓ Record part model, barcode, operator, and time per measurement
✓ Pass/fail/alarm judgment with numeric, color, and voice alerts
✓ Group point mean, range, plane angle calculations
✓ Measurement query & export, report generation & export, trend charts
✓ Online software upgrade and version update
Gage Products
Measurement Demo Videos
Q-DIP Measurement Application Demo
Automatic Gage Measurement Demo
Metal Masters
High-precision metal parts from 3D CAD — the core tool for accuracy assurance
5 Key Functions of Metal Masters
- Verify Equipment Accuracy: Used for daily startup checks on online equipment.
- Determine Theoretical Normal Direction: Improves correlation accuracy between measurement equipment, gages & CMM.
- Comparative Measurement Reference: Collect data from both metal master and lamp at same position; calculate lamp deviation via master.
- Rapid Fault Diagnosis: Quickly determine whether anomalies are equipment or product related.
- Long-Term Stable Use: High dimensional accuracy, wear-resistant positioning, stable profile — long service life.
Metal Master vs Product Sample
| Dimension | Metal Masters | Product Sample |
|---|---|---|
| Manufacturing Method | Precision machined from 3D CAD | Selected from production |
| Dimensional Stability | High precision · Long-term stable | Unstable · Batch-dependent |
| Positioning Wear Resistance | High wear resistance · Good repeatability | Wear-prone · Poor repeatability |
| Correlation Accuracy | High · Profile matches CAD | Low · Significant CAD deviation |
| Calibration Method | No frequent calibration needed | Requires daily CMM calibration |
| Misjudgment Risk | Low · Unaffected by product variation | High · Welding pose & batch variation cause errors |
